New » Yamaha » TT-R230
Model Quick Search

$3,499.00

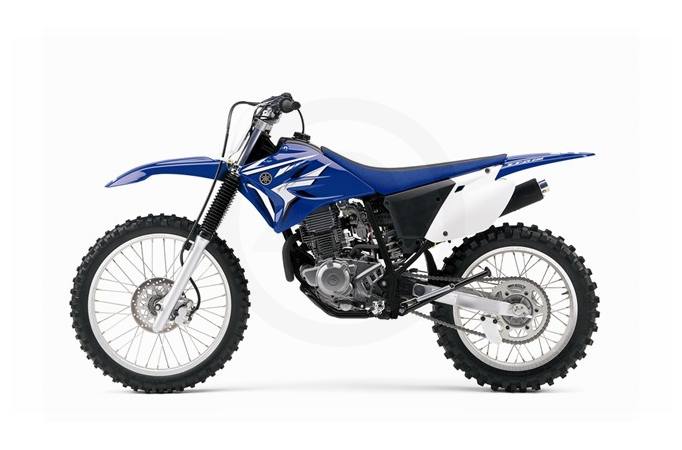

2008 Yamaha TT-R230
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Team Yamaha Blue/White
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

YZ STYLE AND FUMCTION FOR TONS OF FUN.


Racy styling meets total user-friendliness in the new TT-R230. This one's built to take whatever you can dish out and keep on thumping.

  • YZ-inspired handling and looks, and a stout 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.
  • Competition-style flat seat/tank junction for great rider mobility.
  • Electric start makes getting started a complete pushbutton exercise.
  • A low seat height on top of a long-travel suspension and 11.6 inches of ground clearance mean this is a serious trailbike that’s also accessible to a wide range of riders.
  • Steel, diamond-type frame means great handling and strength.
Engine
  • Super-reliable, electric-start 223cc air-cooled SOHC four-stroke puts out smooth, widespread of power perfectly suited for all kinds of trails and riders.
  • Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.
  • CDI magneto ignition system is ultra-reliable and nearly maintenance-free.
  • YZ-type air filter for easy maintenance and maximum airflow.
  • Lightweight exhaust with muffler and quiet, USFS-approved spark arrestor.
  • Automatic cam chain tensioner means minimal maintenance and longer engine life.
Chassis/Suspension
  • Steel frame design with compact wheelbase and low seat height combines accessibility to new or smaller riders with superb maneuverability and super-responsive handling.
  • Linkage-mounted rear shock serves up 8.7 inches of smooth, progressive rear wheel travel for great bump absorption and handling.
  • 36mm front fork with 9.5 inches of wheel travel provides plush, confidence-inspiring control over rough terrain.
  • 11.6 inches of ground clearance should be enough to deal with almost any trail.
  • Aluminum box-section swingarm features snail-type chain adjusters for quick and easy chain adjustments.
  • Front 194mm disc and 130mm rear drum brakes for powerful, confident stops.
  • Full-size 21-inch front and 18-inch rear aluminum wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.
Additional Features
  • Long seat is low, comfortable and allows easy rider movement.
  • Team Yamaha-inspired colors, graphics, and front and side number plates create distinctive styling.
  • Sleek fuel tank with 2.1-gallon capacity for good range and excellent freedom of movement.
  • Large, folding cleated footpegs provide excellent footing even in wet or muddy conditions.
  • Durable fork boots provide excellent fork seal and stanchion tube protection.
Engine Specificaions
  • Type: 223cc air-cooled SOHC 4-stroke, 2 valves
  • Bore x Stroke: 70.0mm x 58.0mm
  • Compression Ratio: 9.5:1
  • Carburetion: Y26P
  • Ignition: DC-CDI
  • Transmission: Constant-mesh 6-speed; multiplate wet clutch
  • Final Drive: Chain
Chassis Specificaions
  • Suspension/Front: Telescopic fork; 9.5-in travel
  • Suspension/Rear: Single shock; 8.7-in travel
  • Brakes/Front: 194mm single disc
  • Brakes/Rear: 130mm drum
  • Tires/Front: 80/100-21 NHS
  • Tires/Rear: 100/100-18 NHS
Dimensions
  • Length: 81.3 in
  • Width: 31.5 in
  • Height: 46.5 in
  • Seat Height: 34.2 in
  • Wheelbase: 54.5 in
  • Ground Clearance: 11.6 in
  • Dry Weight: 236 lb
  • Fuel Capacity: 2.1 gal
Warranty
  • 90 Day (Limited Factory Warranty)
Color
  • Team Yamaha Blue/White
NOTES:

Price and specifications subject to change without notice. Please read your Owner's Manual and all labels before operation.


Specifications

Engine
Engine Type SOHC 4-stroke, 2 valves
Displacement 223cc
Bore and Stroke 70.0mm x 58.0mm
Cooling Air-cooled
Compression Ratio 9.5:1
Fuel System Carburetion: Y26P
Ignition DC-CDI
Chassis
Front Suspension Telescopic fork; 9.5-in travel
Front Brakes 194mm single disc
Front Tire 80/100-21 NHS
Rear Suspension Single shock; 8.7-in travel
Rear Brakes 130mm drum
Rear Tire 100/100-18 NHS
Dimensions
Dry Weight 236 lb
Fuel Capacity 2.1 gal
Wheelbase 54.5 in
Ground Clearance 11.6 in
Seat Height 34.2 in
Transmission
Transmission Constant-mesh 6-speed; multiplate wet clutch
Final Drive Chain
General
Colors Team Yamaha Blue/White
Warranty 90 Day (Limited Factory Warranty)

Compare Models

 Print








Year 2008
Manufacturer Yamaha
Model TT-R230
Style Off-Road
MSRP* $3,499.00
Chassis
Front Suspension Telescopic fork; 9.5-in travel
Front Brakes 194mm single disc
Front Tire 80/100-21 NHS
Rear Suspension Single shock; 8.7-in travel
Rear Brakes 130mm drum
Rear Tire 100/100-18 NHS
Dimensions
Dry Weight 236 lb
Fuel Capacity 2.1 gal
Wheelbase 54.5 in
Ground Clearance 11.6 in
Seat Height 34.2 in
Trail
Rake
Engine
Engine Type SOHC 4-stroke, 2 valves
Displacement 223cc
Bore and Stroke 70.0mm x 58.0mm
Cooling Air-cooled
Compression Ratio 9.5:1
Fuel System Carburetion: Y26P
Ignition DC-CDI
General
Colors Team Yamaha Blue/White
Warranty 90 Day (Limited Factory Warranty)
Transmission
Transmission Constant-mesh 6-speed; multiplate wet clutch
Final Drive Chain

Current Promotions

There are currently no promotions available for this product.
