$4,599.00

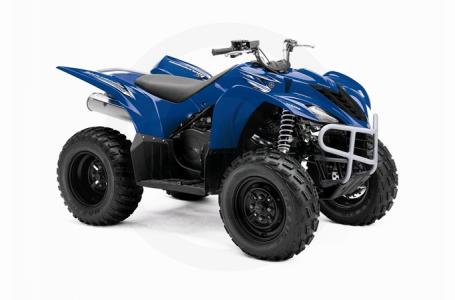

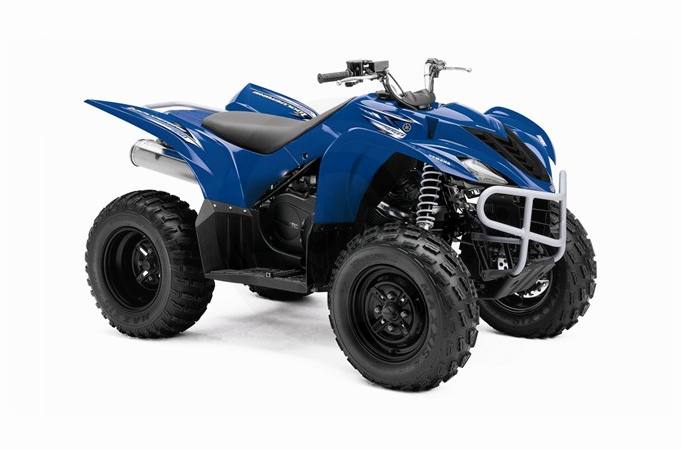

2009 Yamaha Wolverine 350
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • The Wolverine 350 2WD combines a fully automatic transmission and shaft drive, with features like light weight, sporty suspension and Raptor styling.
    • An air-/oil-cooled 348cc engine feeding power through an Ultramatic® transmission makes getting around convenient and fun. The Wolverine 350 is a great explorer.
    • An Ultramatic automatic transmission with reverse provides great convenience and maintains constant belt tension for con?dent downhill engine braking.
    • Raptor-inspired styling includes swoopy bodywork with integrated ?oorboards, a comfortable sport seat and an integrated rear cargo area.
    • Sport-tuned suspension, tires, light weight and a low seat add up to an excellent-handling ATV.
    • Pushbutton electric starting. Naturally.
    Engine Features
    • Powerful 348cc air-/oil-cooled SOHC four-stroke is torquey, revvable, smooth-running and extremely reliable.
    • A semi-oval slide 33mm BSR Mikuni carburetor and high-output DC-CDI ignition deliver great throttle response and performance at all rpm.
    • Full-auto Ultramatic® transmission is extremely rugged and reliable; constant belt-tensioning system provides confident downhill engine braking.
    • Easy-access, tool-free air filter simplifies that task.
    • An automatic cam chain tensioner reduces maintenance requirements.
    Chassis/Suspension Features
    • Light, high-tensile steel frame provides a strong foundation for double-wishbone front and single-shock rear long-travel suspension systems for a sporty yet comfortable ride.
    • Five-way preload-adjustable suspension front and rear lets the Wolverine 350 be dialed in just right for varying loads and conditions.
    • A dry weight of 478 pounds means the Wolverine 350 runs right with the big sport dogs.
    • Low-maintenance shaft drive provide near-bulletproof strength and reliability.
    • Front hydraulic disc brakes provides plenty of stopping power.
    • 23 x 8-12 front and 23 x 10-12 rear sport tires serve up great traction and quick, light handling.
    • Full skid plates provide great undercarriage protection.
    Additional Features
    • An underseat storage compartment and integrated rear cargo rack make it easy to bring the things you need.
    • 1102-pound towing capacity (with optional hitch).
    Engine Specifications
    • Type: 348cc air-/oil-cooled 4-stroke; SOHC, 2 valves
    • Bore x Stroke: 83.0mm x 64.5mm
    • Compression Ratio: 9.2:1
    • Carburetion: Mikuni® 33mm BSR
    • Ignition: DC – CDI
    • Starting System: Electric
    • Transmission: Yamaha Ultramatic® V-Belt / F,N,R
    • Drive Train: 2WD; shaft
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload-adjustable shocks, 6.3-in travel
    • Suspension/Rear: Swingarm; 5-way preload-adjustable, 7.1-in travel
    • Brakes/Front: Dual hydraulic disc
    • Brakes/Rear: Fully sealed drum
    • Tires/Front: AT23 x 8-12
    • Tires/Rear: AT23 x 10-12
    Dimensions
    • L x W x H: 77.9 x 41.9 x 43.1 in
    • Seat Height: 33.1 in
    • Wheelbase: 48.5 in
    • Turning Radius: 118 in
    • Ground Clearance: 8.7 in
    • Fuel Capacity: 3.8 gal
    • Dry Weight: 478 lb
    • Rack Capacity: 132 lb rear
    • Towing Capacity: 1102 lb with optional hitch
    Other
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)
    • Color: Team Yamaha Blue/White

    Specifications

    Engine
    Engine Type 4-stroke; SOHC, 2 valves
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5mm
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric
    Chassis
    Front Suspension Independent double wishbone; 5-way preload-adjustable shocks
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT23 x 8-12
    Rear Suspension Swingarm; 5-way preload-adjustable
    Rear Travel 7.1 in.
    Rear Brake Type Fully sealed drum
    Rear Tires AT23 x 10-12
    Frame High-tensile steel
    Dimensions/Capacities
    Dry Weight 478 lbs
    Rear Rack Capacity 132 lbs
    Towing Capacity 1102 lbs with optional hitch
    Fuel Capacity 3.8 gal
    Ground Clearance 8.7 in.
    Machine Dimensions (LxWxH) 77.9 x 41.9 x 43.1 in.
    Wheelbase 48.5 in.
    Drive Train
    Drive Train 2WD; shaft
    Transmission Yamaha Ultramatic® V-Belt / F,N,R
    General
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Team Yamaha Blue/White
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Wolverine 350
    Style Sport
    MSRP* $4,599.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload-adjustable shocks
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT23 x 8-12
    Rear Suspension Swingarm; 5-way preload-adjustable
    Rear Travel 7.1 in.
    Rear Brake Type Fully sealed drum
    Rear Tires AT23 x 10-12
    Frame High-tensile steel
    Dimensions/Capacities
    Dry Weight 478 lbs
    Front Rack Capacity
    Rear Rack Capacity 132 lbs
    Towing Capacity 1102 lbs with optional hitch
    Fuel Capacity 3.8 gal
    Ground Clearance 8.7 in.
    Machine Dimensions (LxWxH) 77.9 x 41.9 x 43.1 in.
    Wheelbase 48.5 in.
    Drive Train
    Drive Train 2WD; shaft
    Final Drive
    Transmission Yamaha Ultramatic® V-Belt / F,N,R
    Engine
    Engine Type 4-stroke; SOHC, 2 valves
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5mm
    Cylinders
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Team Yamaha Blue/White
    Warranty 6 Month (Limited Factory Warranty)
