$2,499.00

2009 Yamaha Raptor 90
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

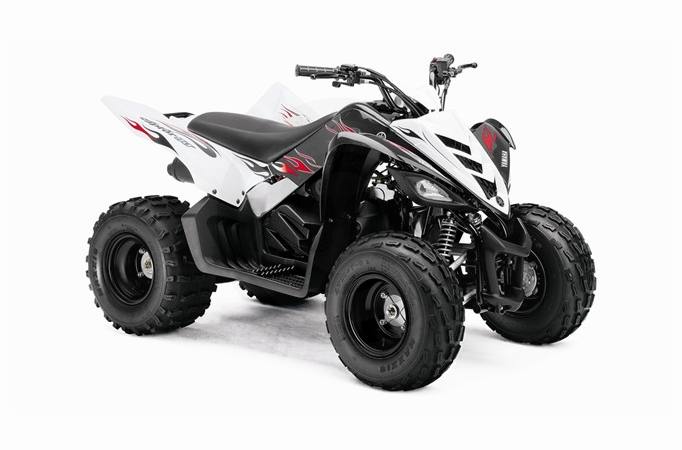

Black/White w/choice of graphics
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • All-new from the ground up, Raptor 90 has the features to deliver more fun than ever before, with a new 88cc SOHC 2-valve engine tuned to develop excellent low-to-mid rpm range performance. It also has features surprising in this class and price range, like a fully automatic CVT transmission, dual A-arm front suspension, rear disc brake, low-profi le tires, and styling unmistakably inspired by the mighty Raptor 700R.
    • Dual A-arm front suspension has 4.4-inches of travel for sporty-riding comfort, while adding to the Raptor 90’s big-ATV look. Shocks have 5-way preload adjustment to accommodate a variety of riders and terrain. The rear swingarm, also 5-way preload adjustable, offers 3.3-inches of travel.
    • For sporty looks and handling, Raptor 90 uses low-profile Maxxis® tires. For riding comfort, there are aggressive-looking full floorboards.
    • For strong, reliable stopping power, there’s a hydraulic disc brake with drilled rotor in the back, and dual sealed drums in the front.
    • Restricting power output for learning riders is exceptionally convenient; there’s a simple plug-in for the CDI unit.
    • Available in Team Yamaha Blue/White, just like full-size ATVs, or in an exclusive Black/White version with two graphics choices young riders will love.
    Engine Features
    • The go-getter 88cc 4-stroke SOHC 2-valve engine is tuned to develop excellent low-to-mid-range performance, just where it’s needed. Engine is force-air cooled for performance and long engine life, and it uses simple, reliable wet-sump lubrication.
    • Easy-to-operate electric starting comes standard, of course, and an emergency kick starter is also provided in a storage spot under the seat for more peace of mind.
    • Constantly variable transmission (CVT) means no shifting. Handy for all riders, it’s a feature entry-level riders particularly appreciate.
    • Engine power is transferred to the rear wheels via a tried-and true chain drive.
    Chassis/Suspension Features
    • Dual A-arm front suspension has 4.4-inches of travel for sporty riding comfort, while helping to give the front end the look of a big Raptor. Shocks have 5-way preload adjustment to accommodate a variety of riders and terrain. The rear swingarm, also 5-way preload adjustable, offers 3.3-inches of travel to enhance riding comfort and traction.
    • Raptor 90 is designed to be comfortable for a wide variety of riders. With its roomy ergonomics, growing riders 12 and older won’t outgrow the machine before they’re ready for more displacement when they’re older.
    • Newly designed Maxxis® low-profile tires, AT18 x 7-8 front and AT18 x 9-8 rear, give Raptor 90 sporty looks and sporty handling.
    • For strong, reliable stopping power, there’s a hydraulic disc brake in the back with a drilled rotor that’s protected against rocks and other obstacles by a beefy guard. Up front, there are dual sealed drums. There’s a handlebar-mounted parking brake, too.
    Additional Features
    • The DC-CDI digital ignition timing control system means reliable performance, with a strong, efficient spark.
    • Battery and other electrical components are conveniently and centrally located for service. Waterproof connectors add to the overall reliability.
    Engine Specifications
    • Type: 88cc, 4-stroke, air-cooled single; SOHC,
    • Bore x Stroke: 47.0mm x 51.0mm
    • Compression Ratio: 10.2:1
    • Carburetion: SVR22
    • Ignition: DC-CDI
    • Starting System: Electric, kick start backup
    • Transmission: Automatic CVT
    • Drive Train: Chain
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 4.4-in travel
    • Suspension/Rear: Swingarm; 5-way preload adjustment, 3.3-in travel
    • Brakes/Front: Dual sealed drum
    • Brakes/Rear: Hydraulic disc
    • Tires/Front: Maxxis® AT18 x 7-8; steel wheels
    • Tires/Rear: Maxxis® AT18 x 9-8; steel wheels
    Dimensions
    • L x W x H: 58.7 x 34.8 x 35.8 in
    • Seat Height: 25.7 in
    • Turning Radius: 114 in
    • Ground Clearance: 3.9 in
    • Fuel Capacity: 1.3 gal
    • Dry Weight: 254 lb
    Other
    • Warranty: 6 Month (Limited Factory Warranty)
    • Colors: Team Yamaha Blue/White, Black/White w/choice of graphics

    Specifications

    Engine
    Engine Type 4-stroke, air-cooled single; SOHC
    Displacement 88 cc
    Bore x Stroke 47.0 x 51.0 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System SVR22
    Starting System Electric, kick start backup
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 4.4 in.
    Front Brake Type Dual sealed drum
    Front Tires Maxxis® AT18 x 7-8
    Rear Travel 3.3 in.
    Rear Suspension Swingarm; 5-way preload adjustmen
    Rear Brake Type Hydraulic disc
    Rear Tires Maxxis® AT18 x 9-8
    Dimensions/Capacities
    Dry Weight 254 lbs
    Fuel Capacity 1.3 gal
    Ground Clearance 3.9 in.
    Machine Dimensions (LxWxH) 58.7 x 34.8 x 35.8 in.
    Drive Train
    Drive Train Chain
    Transmission Automatic CVT
    General
    Colors Team Yamaha Blue/White, Black/White w/choice of graphics
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Raptor 90
    Style Sport
    MSRP* $2,499.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 4.4 in.
    Front Brake Type Dual sealed drum
    Front Tires Maxxis® AT18 x 7-8
    Rear Suspension Swingarm; 5-way preload adjustmen
    Rear Travel 3.3 in.
    Rear Brake Type Hydraulic disc
    Rear Tires Maxxis® AT18 x 9-8
    Frame
    Dimensions/Capacities
    Dry Weight 254 lbs
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 1.3 gal
    Ground Clearance 3.9 in.
    Machine Dimensions (LxWxH) 58.7 x 34.8 x 35.8 in.
    Wheelbase
    Drive Train
    Drive Train Chain
    Final Drive
    Transmission Automatic CVT
    Engine
    Engine Type 4-stroke, air-cooled single; SOHC
    Displacement 88 cc
    Bore x Stroke 47.0 x 51.0 mm
    Cylinders Single
    Engine Cooling Air-cooled
    Fuel System SVR22
    Starting System Electric, kick start backup
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Team Yamaha Blue/White, Black/White w/choice of graphics
    Warranty 6 Month (Limited Factory Warranty)
