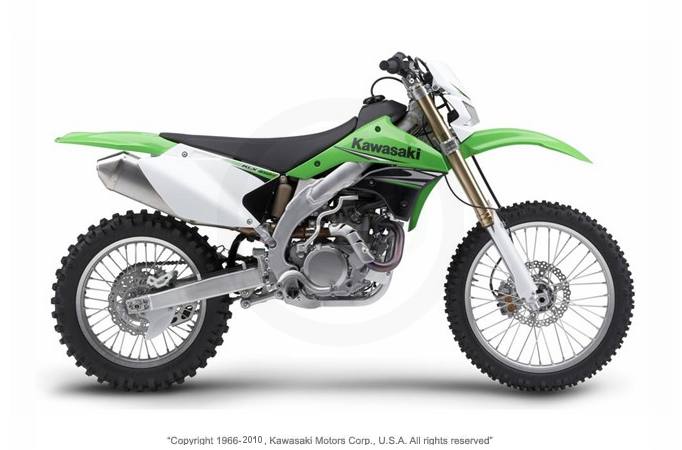

2009 Kawasaki KLX™ 450R
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Ultra-powerful 449cc Liquid-cooled, Four-stroke Single
    • 449cc liquid-cooled, four-stroke single with four valves
    • Features superb low and mid-range power delivery
    • Linear power curve offers plenty of over-rev, for maximum flexibility in choosing shift points
    • Cam lift and timing boost low-and mid-range torque
    • Camshaft lobes and tappets feature a soft-nitride surface treatment for long wear and high-rpm reliability
    • Hand-finished surfaces of the polished intake ports improve intake efficiency at all rpm
    • Lightweight 36mm titanium intake valves and aluminum valve retainers reduce reciprocating weight for reliable valve control at high rpm
    • 30mm steel exhaust valves for improved durability
    • Double valve springs help ensure stable valve operation
    • Screw-type automatic cam chain tensioner with oil pressure spring
    • Low-friction coating on piston skirt
    • Extra flywheel mass provides ultra-smooth engine power delivery
    • Crankshaft and connecting rod are sintered for additional rigidity
    • Crankshaft, rotor mass centralization, oil circulation, and ignition timing designed for ideal engine braking characteristics
    Exhaust
    • Large 41mm titanium exhaust header for maximum power
    • Tapered exhaust pipe joint helps increase ultra-low rpm power.
    • Titanium exhaust pipe heat shield
    • Silencer uses long-fiber packing for lower maintenance
    Cooling
    • High-capacity Denso radiators deliver superior cooling efficiency
    • A reservoir tank is fitted to the radiator, for efficient cooling during long enduros
    • Slim radiators feature tightly packed cores and fins designed to enhanced heat dispersion
    • The radiator shroud design is optimised for a seated position
    Electric Starting
    • High-capacity starter motor is compact, yet offers high-output to help ensure quick and reliable starts under all conditions
    • Lightweight battery is located under the seat and behind the airbox for optimum mass centralization
    • Having both electric and kick starters means the KLX450R can be quickly restarted if the engine stalls during an event
    • Features highly reliable auto-decompression system; the dual-weight centrifugal decompression system fitted to the exhaust cam eases starting, and its simple construction helps to ensure reliability
    Wide-Ratio Five-Speed Transmission
    • Features ratios selected="true"="true"="true"="true" specially for off-road racing
    • The transmission’s gears are designed for high durability
    • Ball bearing shift lever for smoother shifting
    • Ratchet-type shift mechanism for smoother shifting and a more positive feel
    Frame
    • Lightweight all-aluminum perimeter frame is a composite structure comprising forged, extruded and cast components
    • Slim frame profile, two-piece radiator shrouds, and careful bodywork design make the KLX450R feel light and narrow beneath the rider
    • Aluminum skid plate
    Front Suspension
    • Fork tuning is optimized for light, easy handling characteristics
    • Kayaba AOS (Air-Oil-Separate) fork keeps oil and air in separate chambers for stable damping performance during long rides
    • Large front fork damper cartridges offer a more progressive and plush action
    • Low-friction fork seals help reduce stiction
    Rear Suspension
    • Uni-Trak® rear suspension system mounts the suspension arm below the swingarm, allowing a longer rear suspension stroke.
    • Rear shock features dual compression adjustability, allowing high-speed and low-speed damping to be tuned separately
    • Alloy swingarm uses cast front section, tapered hydroformed spars and forged chain pullers; the tapered spars are shaped to match the balance of flex and rigidity required of the aluminum frame
    • Sprocket style chain roller reduces drive lash
    Brakes
    • Petal brake discs front and rear, help reduce unsprung weight and clean the brake pads for more efficient braking performance
    18” Rear Wheel
    • Durable 18” rear wheel allows fitment of a wide selection of off-road tires
    From the Cockpit
    • Renthal aluminum handlebars are standard
    • Lightweight short-length grips feature a special pattern to reduce vibration transmitted from the bars to the rider
    • Seat is wider than the KX450F’s for additional comfort during long enduros
    • Seat uses a slip-resistant top surface for good grip when seated and smooth sides for excellent rider mobility
    Off-Road Racing Equipment
    • Lightweight digital instrumentation includes a speedometer, twin tripmeter, odometer and clock
    • Lightweight 2.1 gallon fuel tank is constructed to meet strict U.S. environmental regulations
    • Gas tank petcock is fitted with a reserve pickup
    • Compact lighting package includes a 35 W headlight with lightweight plastic lens
    • Ultra-compact and energy efficient LED tail light
    • Two-piece construction of the left-side cover with a special “door” for easy access to the air filter
    • Engine guards protect both sides of the engine
    • Includes an aluminum skid plate for added protection from rocks and ledges
    • Sealed chain and a side stand are fitted as standard equipment
    • California models feature a secondary air system to enable them to meet strict emissions regulations
    Specifications
    • Engine Type: Four-stroke, DOHC, four-valve single
    • Displacement: 449 cc
    • Bore & Stroke: 96.0 x 62.1 mm
    • Compression Ratio: 12.0:1
    • Cooling: Liquid
    • Carburetor: Keihin FCR40
    • Ignition: Digital AC-CDI
    • Starting: Electric, with primary kick backup
    • Transmission: Wide-ratio five-speed
    • Final Drive: Sealed chain
    • Frame: Aluminum, perimeter design
    • Rake/Trail: 27.1°/4.6 in.
    • Front Tire Size: 80/100-21
    • Rear Tire Size: 110/100-18
    • Front Suspension / wheel travel: 48mm inverted AOS-type cartridge fork with 22-way compression damping and 20-way rebound damping / 11.2 in.
    • Rear Suspension / wheel travel: UNI-TRAK® single shock system with 22-way low-speed, two-turn variable high-speed compression damping and 22-way rebound damping / 11.0 in.
    • Wheelbase: 58.3 in.
    • Front Brake Type: 250mm petal rotor with hydraulic dual-piston caliper
    • Rear Brake Type: 240mm petal disc with hydraulic single-piston caliper
    • Fuel Tank Capacity: 2.1 gal.
    • Ground Clearance: 12.6 in.
    • Seat Height: 37.0 in.
    • Curb Weight: 277.7 lbs.
    • Overall Length: 85.8 in.
    • Overall Width: 32.3 in.
    • Overall Height: 49.4 in.
    • Color : Lime Green
    • Warranty : 6 months
    • Good Times™ Protection Plan: 12, 24 or 36 months

    Specifications

    Engine
    Engine Type Four-stroke, DOHC, four-valve single
    Displacement 449 cc
    Bore and Stroke 96.0 x 62.1 mm
    Cooling Liquid
    Compression Ratio 12.0:1
    Fuel System Keihin FCR40
    Ignition Digital AC-CDI
    Chassis
    Front Suspension 48 mm inverted AOS-type cartridge fork with 22-way compression damping and 20-way rebound damping; Travel: 11.2 in.
    Front Brakes 250 mm petal rotor with hydraulic dual-piston caliper
    Front Tire 80/100-21
    Rear Suspension UNI-TRAK® single shock system with 22-way low-speed, two-turn variable high-speed compression damping and 22-way rebound damping; Travel: 11.0 in.
    Rear Brakes 240 mm petal disc with hydraulic single-piston caliper
    Rear Tire 110/100-18
    Dimensions
    Dry Weight 277.7 lbs
    Fuel Capacity 2.1 gal.
    Wheelbase 58.3 in.
    Ground Clearance 12.6 in.
    Seat Height 37.0 in.
    Trail 4.6 in.
    Rake 27.1°
    Transmission
    Transmission Wide-ratio five-speed
    Final Drive Sealed chain
    General
    Colors Lime Green
    Warranty Standard: 6 months; Optional: Good Times™ Protection Plan: 12, 24 or 36 months
