New » Yamaha » TT-R50E
Model Quick Search

$1,299.00

2009 Yamaha TT-R50E
Request a Quote Financing Calculator Request a Brochure Financing Form

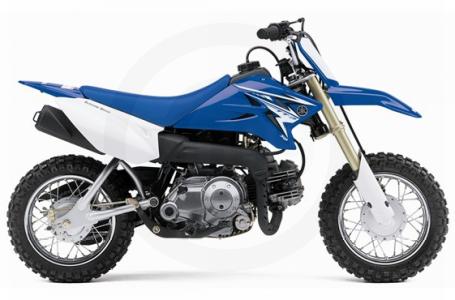

Click here to view full image.
Team Yamaha Blue/White
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • The TT-R50E gets the same pushbutton electric starting feature as our full line of electric-start TT-Rs.
    • Great for learning and/or playing, complete with 49cc of four-stroke fun feeding power through a three-speed automatic-clutch transmission.
    • Big YZ styling meets little people’s stature; the seat’s only 21.8 inches from the dirt.
    • Inverted fork and Monocross® rear end provide great handling.
    • Large chain cover for maximum protection and minimal maintenance.
    Engine Features
    • 49cc air-cooled, SOHC powerplant puts out smooth, reliable four-stroke power perfect for kids and small novices.
    • Three-speed gearbox with automatic centrifugal clutch makes learning to shift gears a breeze.
    • Convenient electric starter for effortless starting.
    • Compact-design cases keep overall engine width down to 296mm, for a narrow feel and great handling.
    • 11mm Mikuni® VM-type carburetor with automatic on/off electric heater ensures crisp, dependable throttle response.
    • Automatic cam chain tensioner reduces maintenance.
    • CDI ignition system delivers hot, reliable spark and requires minimal maintenance.
    • Lightweight, upswept exhaust system contains a quiet, WR-type USFS-approved spark arrestor.
    Chassis/Suspension
    • Curved steel backbone frame keeps the TT-R50E narrow and has three engine-mounting points for excellent rigidity and handling.
    • Inverted fork with 22mm sliders provides 3.8 inches of smooth front wheel travel for a great ride and handling.
    • Monocross-style rear suspension is controlled by a single coil-over shock and provides 2.8 inches of bump-smothering rear wheel travel.
    • Front and rear 80mm drum brakes deliver strong, dependable stopping power, and the rear’s activated by a right foot pedal just like the big YZs.
    • 10-inch front and rear wheels with knobby tires offer great grip and exceptional wear.
    • Low, 21.8-inch seat height allows most kids to put both feet down for inhanced handling and added confidence.
    Additional Features
    • Key-type ignition switch deters unauthorized riding.
    • Throttle stop screw lets the adult supervisor restrict speed while beginners are learning.
    • Cool-looking YZ bodywork includes an integrated front fender/ number plate.
    • Standard sidestand tucks up out of the way when not in use.
    • Handy choke lever is located right in front of the main switch.
    • Large, folding, cleated footpegs provide excellent footing.
    Chassis
    • Suspension/Front: Inverted telescopic fork; 3.8-in. travel
    • Suspension/Rear: Single shock; 2.8-in. travel
    • Brakes/Front: 80 mm drum
    • Brakes/Rear: 80 mm drum
    • Tires/Front: 2.50-10-4PR
    • Tires/Rear: 2.50-10-4PR
    Dimensions
    • Length: 51.4 in.
    • Width: 23.4 in.
    • Height: 30.5 in.
    • Seat Height: 21.8 in.
    • Wheelbase: 36.4 in.
    • Ground Clearance: 5.3 in.
    • Fuel Capacity: .82 gal.
    • Wet Weight: 125 lbs.
    Warranty
    • Warranty: 90 Day (Limited Factory Warranty)
    Engine
    • Type: 49 cc air-cooled SOHC 4-stroke; 2 valves
    • Bore x Stroke: 36.0 mm x 48.6 mm
    • Compression Ratio: 9.5:1
    • Carburetion: Mikuni® VM11
    • Ignition: CDI
    • Transmission: Constant-mesh 3-speed; automatic clutch
    • Final Drive: Chain

    Specifications

    Engine
    Engine Type 49 cc air-cooled SOHC 4-stroke; 2 valves
    Displacement 49 cc
    Bore and Stroke 36.0 mm x 48.6 mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System Mikuni® VM11
    Ignition CDI
    Chassis
    Front Suspension Inverted telescopic fork; 3.8-in. travel
    Front Brakes 80 mm drum
    Front Tire 2.50-10-4PR
    Rear Suspension Single shock; 2.8-in. travel
    Rear Brakes 80 mm drum
    Rear Tire 2.50-10-4PR
    Dimensions
    Dry Weight 125 lbs.
    Fuel Capacity .82 gal.
    Wheelbase 36.4 in.
    Ground Clearance 5.3 in.
    Seat Height 21.8 in.
    Transmission
    Transmission Constant-mesh 3-speed; automatic clutch
    Final Drive Chain
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model TT-R50E
    Style Off-Road
    MSRP* $1,299.00
    Chassis
    Front Suspension Inverted telescopic fork; 3.8-in. travel
    Front Brakes 80 mm drum
    Front Tire 2.50-10-4PR
    Rear Suspension Single shock; 2.8-in. travel
    Rear Brakes 80 mm drum
    Rear Tire 2.50-10-4PR
    Dimensions
    Dry Weight 125 lbs.
    Fuel Capacity .82 gal.
    Wheelbase 36.4 in.
    Ground Clearance 5.3 in.
    Seat Height 21.8 in.
    Trail
    Rake
    Engine
    Engine Type 49 cc air-cooled SOHC 4-stroke; 2 valves
    Displacement 49 cc
    Bore and Stroke 36.0 mm x 48.6 mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System Mikuni® VM11
    Ignition CDI
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)
    Transmission
    Transmission Constant-mesh 3-speed; automatic clutch
    Final Drive Chain
