$9,190.00

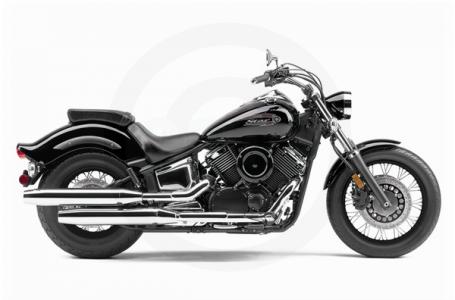

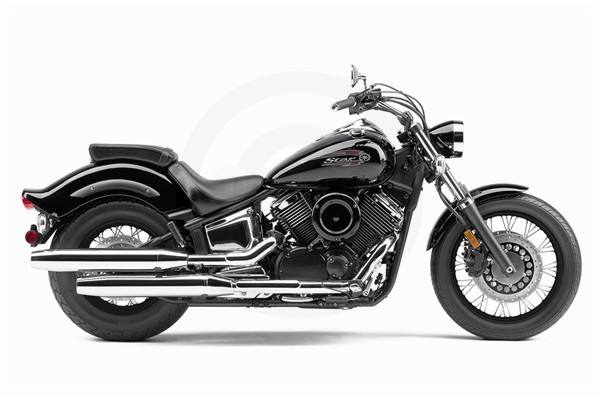

2009 Yamaha V Star 1100 Custom
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    KEY FEATURES
    • Long, low, stripped-down-to-the-bare beautiful essentials and powered by a modern SOHC V-twin, the V Star 1100 Custom goes as good as it looks.
    • With a seat only 27.2 inches from the pavement, the Custom is long and low, perfect for a plush ride.
    • Classic rigid-look rear end serves up 4.5 inches of rear wheel travel damped by a hidden preload-adjustable shock.
    • Special Midnight 1100 Custom is decked out in shiny Raven paint with flames and blacked-out components throughout.
    • The V Star 1100 Custom achieves fuel economy up to an estimated 44 mpg with a fuel tank that holds 4.5 gallons of gas.
    ENGINE
    • 65 cubic-inch (1063cc), air-cooled, SOHC, 75-degree V-twin is tuned for outstanding low- and mid-range torque — maximum torque is reached at only 2500 rpm — for exceptional overall cruising performance.
    • Forged lightweight pistons provide greater durability and reduced vibration and reciprocating mass.
    • Ceramic-composite, cylinder-bore plating ensures superior heat dissipation for better cooling and longer engine life.
    • Thick cylinder cooling fins enhance the stylish look while increasing cooling efficiency.
    • Dual, heated Mikuni® 37mm carburetors with throttle position sensor feature a progressive pulley, electronic fuel pump and handy side-mounted air filter to ensure consistent fuel flow, great throttle response and optimum power throughout the rev range.
    • One-way cam, clutch-type starter decreases mechanical noise during starting.
    • Low-maintenance shaft drive delivers superior reliability and smooth cruiser ride quality.
    • Two-into-two exhaust system with dual shotgun-style staggered pipes play outstanding V-twin music and simplify aftermarket conversion.
    CHASSIS/SUSPENSION
    • Low-slung, large-diameter, rigid double-cradle frame with 33-degree creates strong, stylish machine with precise, predictable handling.
    • Long, 64.6-inch wheelbase produces a long, low retro profile, with spacious ergonomics for added rider comfort and great handling.
    • A flat, drag-style one-inch handlebar reinforces the custom performance theme.
    • 41mm telescopic fork with 5.5 inches of travel smoothes out the bumps.
    • Narrow tire on an 18-inch spoked front wheel looks the part, while a 15-inch fatty out back under a kicked-up fender completes the look.
    • Tucked-out-of-sight, link-type, preload-adjustable single rear shock with 4.5 inches of class-leading travel for a low profile that gives up a plush ride.
    • Large-diameter dual front disc brakes and a single rear disc provide strong, confidence-inspiring stopping power.
    ADDITIONAL FEATURES
    • Low-profile split tandem seat and passenger pillion are comfortable and stylish.
    • Industry-leading Star Family fit and finish features rich, lustrous paint and extensive chrome accents that create a timeless machine.
    • Large, 4.5-gallon teardrop fuel tank looks right and goes a long way between fill-ups.
    • Eye-catching, tank-mounted speedometer designed with a large face for easy reading of tripmeter/odometer displays and turn signal, neutral, high beam, low oil and engine diagnostic indicator lights.
    • Locking compartment under side cover provides secure storage for small items.
    • Chrome 12V 60/55-watt halogen headlight looks incredible and helps maximize nighttime visibility.
    • Maintenance-free 12V 14AH battery ensures dependable, no-hassle starting.
    SPECS
    • Engine Type: 65-cubic-inch (1063cc) air-cooled 75° V-twin; SOHC, 2 valves/cylinder
    • Bore x Stroke: 95mm x 75mm
    • Compression Ratio: 8.3:1
    • Carburetion: (2) 37mm Mikuni; throttle position sensor
    • Ignition: TCI
    • Transmission: 5-speed, multiplate wet clutch
    • Final Drive: Shaft
    • Fuel Capacity: Steel; hidden shock
    • Suspension/Front: Telescopic fork; 5.5-in travel
    • Suspension/Rear: Single shock; adjustable preload, 4.5-in travel
    • Brakes/Front: Dual hydraulic disc, 298mm
    • Brakes/Rear: Hydraulic disc, 282mm
    • Tires/Front: 110/90-18
    • Tires/Rear: 170/80-15
    • Wheels: Laced
    • Length: 94.7 in
    • Width: 35.2 in
    • Height: 43.3 in
    • Seat Height: 27.2 in
    • Wheelbase: 64.6 in
    • Ground Clearance: 5.7 in
    • Fuel Capacity: 4.5 gal
    • Fuel Economy: 44 mpg
    • Wet Weight: 606 lb / C: 612 lb
    • Warranty: 1 Year (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type 75° V-twin; SOHC, 2 valves/cylinder
    Displacement 65 cu. in. (1063cc)
    Bore and Stroke 95 x 75 mm
    Cooling Air-cooled
    Compression Ratio 8.3:1
    Ignition TCI
    Chassis
    Front Suspension Telescopic Fork; 5.5-in. Travel
    Front Brakes Dual Hydraulic Disc, 298 mm
    Front Tire 110/90-18
    Rear Suspension Single shock; adjustable preload, 4.5-in. Travel
    Rear Brakes Hydraulic Disc, 282 mm
    Rear Tire 170/80-15
    Dimensions
    Dry Weight Wet Weight: 606 lbs. / C: 612 lbs.
    Fuel Capacity 4.5 gal.
    Wheelbase 64.6 in.
    MPG 44 mpg
    Seat Height 27.2 in.
    Transmission
    Transmission 5-Speed, multiplate wet clutch
    Final Drive Shaft
    General
    Speedometer Standard
    Odometer Standard
    Colors Candy Red, Raven - Midnight Custom
    Warranty 1 Year (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model V Star 1100 Custom
    Style Touring
    MSRP* $9,190.00
    Chassis
    Front Suspension Telescopic Fork; 5.5-in. Travel
    Front Brakes Dual Hydraulic Disc, 298 mm
    Front Tire 110/90-18
    Rear Suspension Single shock; adjustable preload, 4.5-in. Travel
    Rear Brakes Hydraulic Disc, 282 mm
    Rear Tire 170/80-15
    Dimensions
    Dry Weight Wet Weight: 606 lbs. / C: 612 lbs.
    Fuel Capacity 4.5 gal.
    Wheelbase 64.6 in.
    MPG 44 mpg
    Seat Height 27.2 in.
    Trail
    Rake
    Engine
    Engine Type 75° V-twin; SOHC, 2 valves/cylinder
    Displacement 65 cu. in. (1063cc)
    Bore and Stroke 95 x 75 mm
    Cooling Air-cooled
    Compression Ratio 8.3:1
    Fuel System
    Ignition TCI
    General
    Speedometer Standard
    Tachometer
    Odometer Standard
    Colors Candy Red, Raven - Midnight Custom
    Warranty 1 Year (Limited Factory Warranty)
    Transmission
    Transmission 5-Speed, multiplate wet clutch
    Final Drive Shaft
